2x1x2x24AWG Twisted Pair + 2x1x0.75 Power Cables + Cat5e F/UTP LSZH Sheathed Unarmored

Composite Cable

2x1x2x24AWG Twisted Pair + 2x1x0.75 Power Cables + Cat5e F/UTP LSZH Sheathed Unarmored

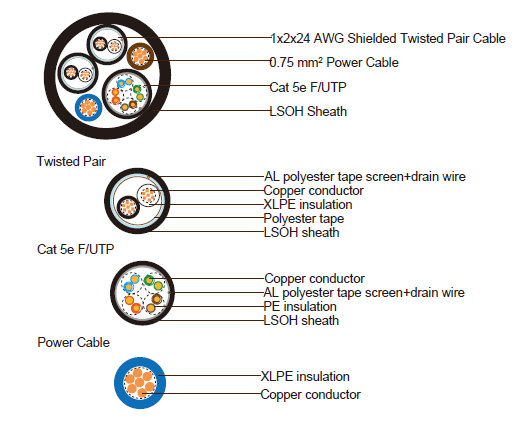

CONSTRUCTION

2x1x0.75mm2 Power Cable

Conductor

Stranded copper wire , class 2 to IEC 60228

Insulation

XLPE. Nominal thickness 0.7mm. Overall diameter 2.5mm

Insulation Color

Brown and blue.

2x1x2x24AWG Twisted Pair

Conductor

7/0.2mm stranded copper wire .

Insulation

XLPE. Nominal thickness 0.4mm.

Insulation Color

Black and white.

Screen

Alumminum tape with tinned copper drain wire.

Sheath

LSZH sheath. Nominal thickness 0.76 mm. Overall diameter 4.8mm

Sheath Color

Black and grey.

Cat 5e F/UTP

Conductor

4x2x24 AWG plain copper.

Insulation

PE material. Nominal diameter is 0.91mm.

Insulation Color

White-orange,Orange;White-blue,Blue;



White-green,Green;White-brown,Brown.

Screen

Alumminum tape with tinned copper drain wire.

Sheath

LSZH sheath. Nominal overall diameter is 6.7mm.

Sheath Color

Black or Grey or Blue. Other colors also available upon request.

Applications

IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T.



IEEE 802.5 16 MB; ISDN; TPDDI; ATM.

Standards

ISO/IEC 11801, ANSI/TIA 568B.

Element Assembly

Filler

PE material.

Wrapping Tape

Polyester tape or woven tape.

Outer Sheath

LSZH. Nominal thickness 1.8mm. Nominal overall diameter is 15.3+/-1mm.

Sheath Color

Black. Other colors also available upon request.

Electrical and Physical Properties @ 20°C:

Power Cable

Max. Electrical Resistance: 24.5 Ohm/km

Min. Insulation Resistance: 1000 MOhm/km

Operating Temperature: -20°C/+90°C

Voltage rating: 0.6/1KV

Twisted Pair

Max. Electrical Resistance: 90 Ohm/km

Min. Insulation Resistance: 1000 MOhm/km

Operating Temperature: -20°C/+90°C

Voltage rating: 300/500V

Cat5e F/UTP(1-100MHz)

Max. Electrical Resistance: 93.8 Ohm/km

Min. Insulation Resistance: 2000 MOhm/km

Operating Temperature: -20°C/+90°C

Max. Resistance Unbalance: 5%

Max. Mutual Capacitance: 5.6nF/100m

Max. Capacitance Unbalance: 330pF/100m

Characteristic Impedance : 100 ± 15 (1-100MHz)

Nominal Velocity of Propagation: 69%

Max. Propagation Delay : 536ns/100m@100MHz

Max. Propagation Delay skew : 30ns/100m
